The A-Series family of proprietary thin-film reverse osmosis membrane is characterized by high flux and high sodium chloride rejection. AG HR brackish water elements are selected when high rejection and oper-ating pressures as low as 200 psi (1,379 kPa) are de-sired. These elements are recommended for brackish water with salt concentration (TDS) levels between 1,000 and 10,000mg/l or when very high salt rejection of monovalent ions is required.
High Flow, High Rejection, Low Fouling Brackish Water RO Membranes
CPA5-LD from the LD Technology™ innovative low fouling membranes, achieves the highest flow and highest salt rejection for the most difficult of brackish feed water conditions
Where ultrahigh purity water is required under difficult feedwater conditions, the CPA5-LD gives the most desirable combination of high rejection and high flow. For industries such as power, semiconductor, food and beverage, where high purity water is critical to operations, CPA5-LD gives you the most desirable combination of performance and efficiency. CPA5-LD helps reduce RO system power consumption and the membrane resistance to biological and colloidal fouling helps reduce the number of cleanings required, lowering the overall cost of your operation.

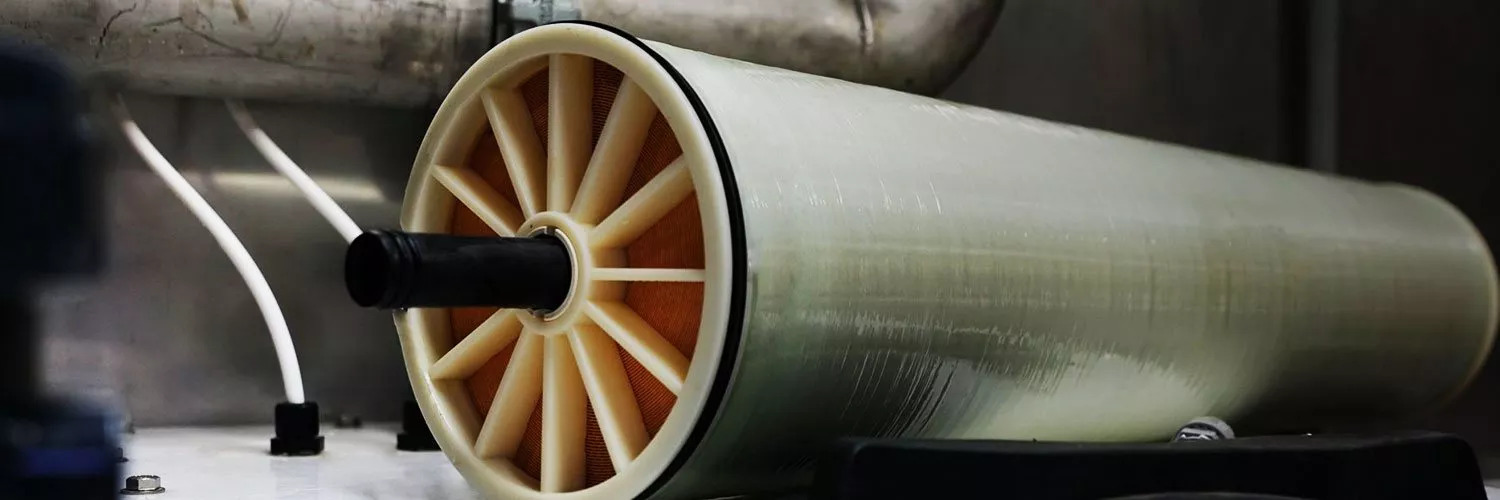

Spiral-wound element with polyamide thin-film composite membrane
With decades of proven performance, Dow FilmTecTM BW30-400/34
Delivers high quality permeate water while minimizing CAPEX
Offers the most effective cleaning performance, robustness and durability due to its widest cleaning PH range (1-13) tolerance and the support of Dow technical representatives
Ideal for: reverse osmosis plant managers and operators dealing with challenging waters and wastewaters and looking for consistency, high performance, long element life, increased productivity and low fouling features.
Z.Plex* Technology Depth Filter for Municipal Water Pre-Filtration

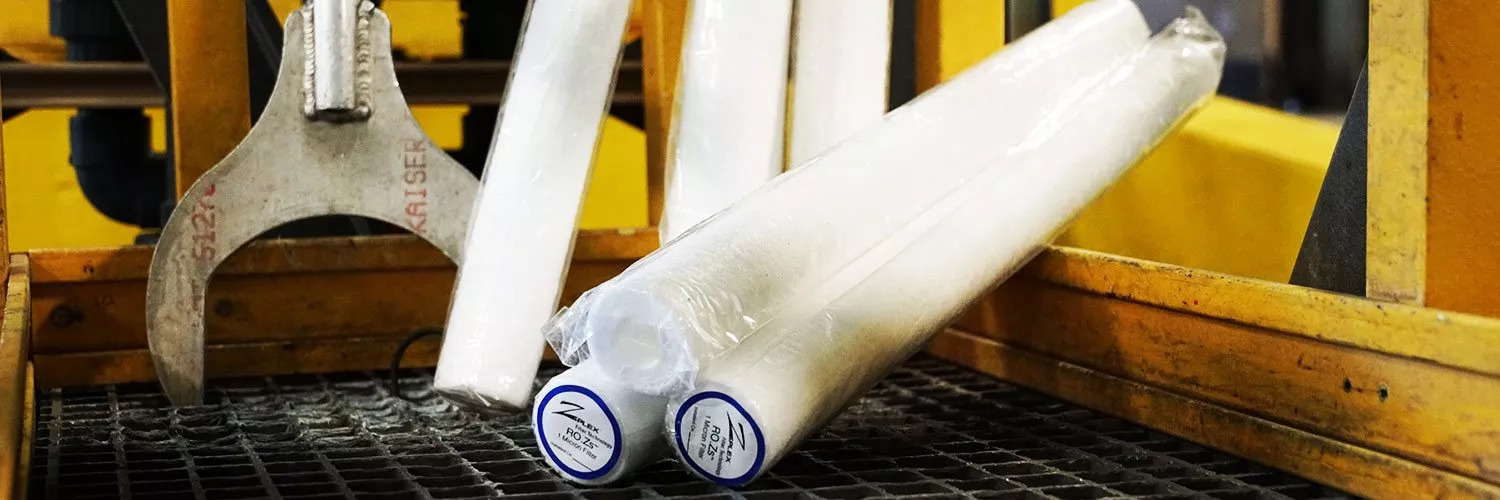

Muni.Z is manufactured using patented Z.Plex filter technology and is engineered for municipal water pre-filtration. Muni.Zs' proprietary filter matrix provides unmatched performance in these applications. Up to twice the life of conventional depth filters
Up to 50% lower pressure drop
Up to 100% greater dirt holding capacity
Superior SDI reduction
Melt-bonded exterior and core ensures no media migration
Provides lower total cost of filtration operations
Application in wide variety of feed waters
NSF 61 certified, FDA compliant
Materials of Construction
Muni.Z filters are made of 100% polypropylene construction. Tables 1 and 2 provide information on dimensions and flow performance.
Micron Ratings, Lengths and End Adapters
Micron ratings: 1 and 5 micron
Standard lengths fit most housings - custom lengths are also available
Wide range of end adapters including self-sealing spring, 222 and 226 O-rings, and extended cores.
Pentair Pentek Standard Filter Housings are manufactured of a durable polypropylene or clear Styrene-Acrylonitrile (SAN). All are equipped with 3/4" NPT inlet and outlet ports. Standard Filter Housings are available in both 10" and 20" lengths and will accommodate a wide range of 2-1/2" to 2-7/8" diameter cartridges. The reinforced polypropylene cap offers an optional pressure-relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.
